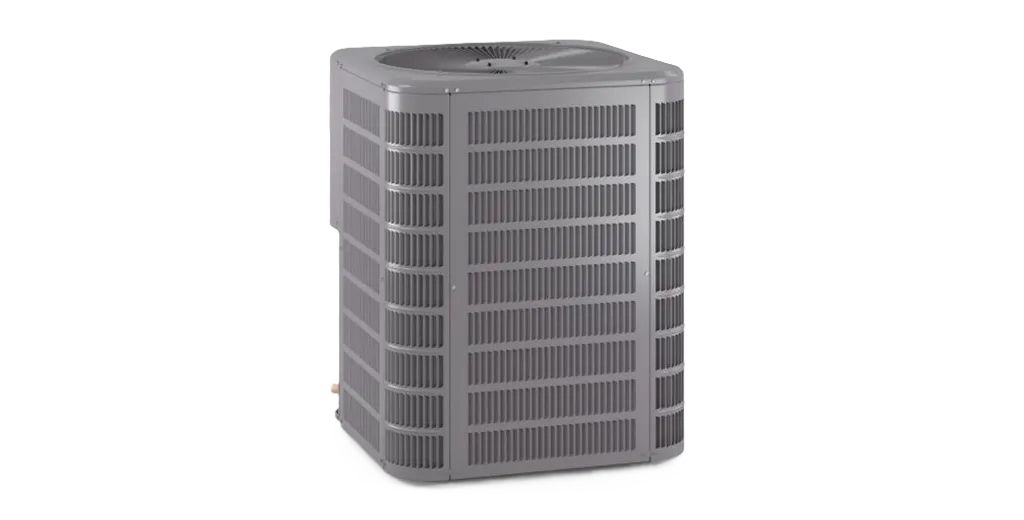

7HP14F30P - 2 1/2 Ton, 14 SEER2, Heat Pump, Single-Stage, R-454B, 208-230/1/60

Product Specifications

SKU:
7HP14F30P
AHRI - Usage:
Outdoor
Approvals:
ETL Listed
Brand:
Heating and Cooling
CBU - Compressor Bearing Unit:
Yes
Color:
Gray
Compressor Type:
Scroll
Condenser Coil Fins per Inch (FPI):
22
Condenser Fan CFM:
2890
Condenser Motor HP:
1/6
Condenser Motor RPM:
847
Condenser Motor Type:
PSC (Permanent Split Capacitor)
Cooling Capacity:
29,600
Country of Origin:
USA
Cycle/Hertz:
60 Hz
EER2:
12.8
Energy Star Rated:
Yes
Equipment Type:
Heat Pump
ERP ID:
450333
EPS:
Equipment
Full Load Amps:
1
Heating Capacity:
18,000-26,800
HSPF2:
8.2
Liquid Line Fitting Type:
Sweat or Braze
Liquid Line Size (OD):
3/8"
Locked Rotor Amps (LRA):
67
Maximum Overcurrent Protection (MOCP):
25
Metering Device:
TXV/TEV - Thermostatic Expansion Valve
Phase:
Single
Product Family:
7HP14F
Prop 65:
Yes
Rated Load Amps (RLA):
12.5
Refrigerant:
R-454B
SEER2:
15.2
Sound Level (dBA):
74
Substantial Commodity:
Steel; Copper; Aluminum
Suction Line Fitting Type:
Sweat or Braze
Suction Line Size (OD):
3/4"
Tonnage:
2.5
UOM:
EA
UPC:
662551592122
Voltage:
208-230 VAC
Weight:
213

Product Documentation

7HP14F
FEATURES:
  • 14.3 SEER2 and up and 7.5 HSPF2 efficiency ratings
  • ENERGY STAR® certification means you could be eligible for money-saving rebates
  • Omniguard® Total Corrosion Protection Technology helps protect against corrosive elements extending the life of your unit for years to come
  • Quiet Shift™ technology reduces operating sounds when the unit goes into defrost mode to remove frost and ice buildup, so you get better performance with minimal noise and less maintenance
  • 2025 Low GWP Refrigerant Compliant
  • Powerful single-stage motor delivers years of dependable comfort and helps reduce heating costs compared to older, less efficient furnaces
  • Dual-Fuel system offers an ideal combination of energy sources, electric and gas, pairing a heat pump and matching gas furnace together to maintain comfort
  • Permanently lubricated condenser fan motor needs no annual maintenance

APPLICATIONS
  • 1.5 through 5 tons
  • Single phase power supply
  • Sound levels low as 74 dBA
  • Vertical air discharge
  • Applicable to indoor air handlers or gas furnaces with indoor add-on coils
  • Shipped completely factory assembled, piped and wired
