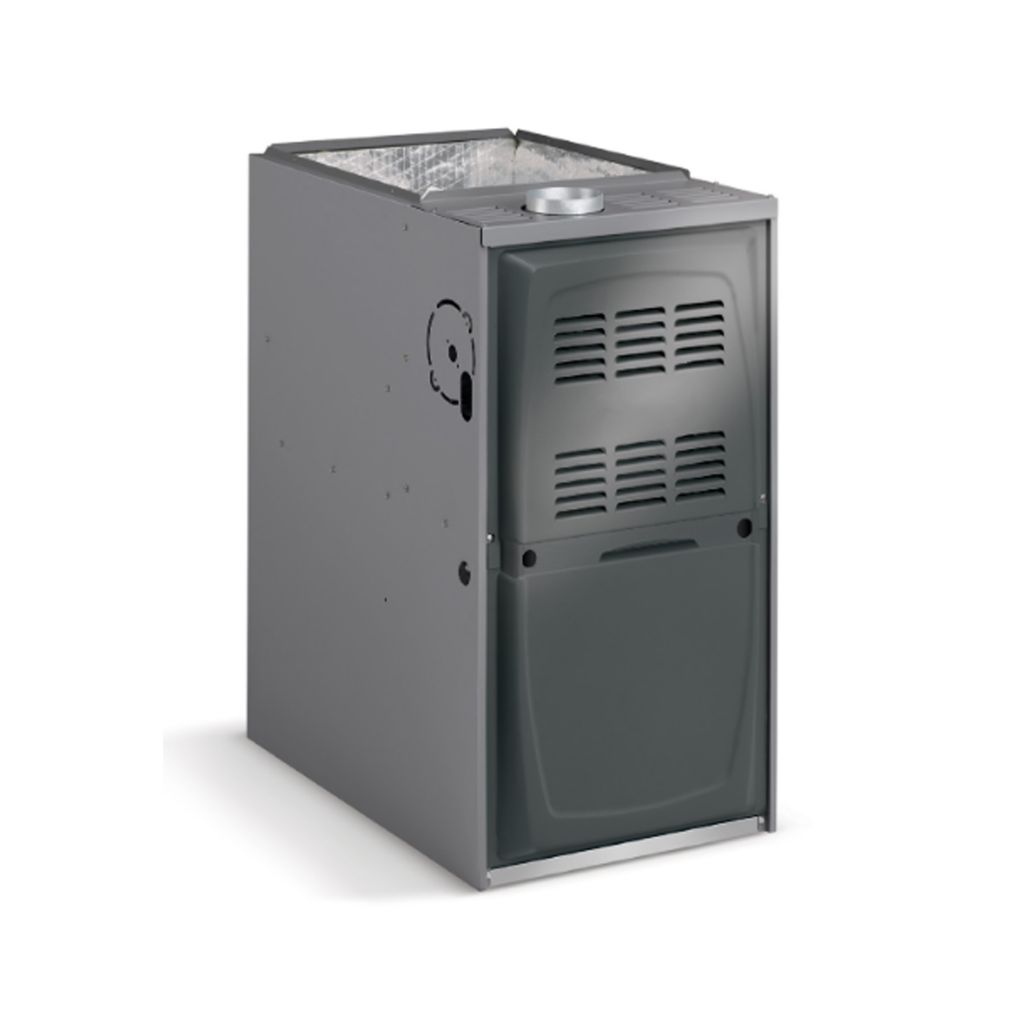

80G1UH060AE12XK - 80% AFUE UH Gas Furnace, Single Stage, 60K BTU, 14.5" W, Ultra Low NOx, 120 V, Refrigerant Detection-Ready
Product Specifications
Product Specifications
SKU:
80G1UH060AE12XK
AFUE:
80
AHRI - Usage:
Indoor AHU
Air Flow Direction:
Upflow / Horizontal
Approvals:
AHRI, CSA
Blower Motor Speeds:
Multiple
Blower Motor Type:
ECM (Electronically Commutated Motor)
Brand:
Heating and Cooling
BTU Input:
60,000
BTU Output:
48,000
Cabinet Width:
14.5
CFM:
292-1,389
Color:
Gray
Country of Origin:
USA
Cycle/Hertz:
60 Hz
Energy Star Rated:
No
Equipment Type:
Furnace
ERP ID:
456741
FER Compliant:
No
Filter Size:
(1) 16" x 25" x 1" Side Return; (1) 14" x 25" x 1" Bottom Return
EPS:
Equipment
Fuel Type:
Natural Gas
Full Load Amps:
6.8
Furnace Type:
Gas
Gas Connection Size:
1/2"
Ignition Type:
Hot Surface (HSI)
Includes Filter Rack:
No
Maximum Overcurrent Protection (MOCP):
15
Phase:
Single
Product Family:
80G1EXK
Prop 65:
Yes
Substantial Commodity:
Steel; Copper; Aluminum
Tonnage:
3
UOM:
EA
UPC:
662551600872
Voltage:
120 VAC
Product Documentation
Product Documentation
80G1EXK SINGLE STAGE, CONSTANT TORQUE, ULTRA LOW NOX GAS FURNACE WITH REFRIGERANT DETECTION
The 80G1EXK model is an 80% AFUE gas furnace used for upflow or horizontal applications only, manufactured with aluminized steel tubular heat exchangers. 80G1EXK units are available in heating capacities of 40,000 to 100,000 Btuh and cooling applications up to 5 tons. Units are approved for installations up 7500 feet above sea level and factory equipped for use with natural gas only. The 80G1EXK is a single-stage gas furnace with high efficiency constant torque blower motor which meets the California Ultra Low Nitrogen Oxides (NOx) Standards (14ng/J) and California Seasonal Efficiency requirements. All units use a redundant gas valve to assure safety shut-off as required by C.S.A. All specifications are subject to change without notice.
CONFIGURATIONS
The 80G1EXK model is an 80% AFUE gas furnace used for upflow or horizontal applications only, manufactured with aluminized steel tubular heat exchangers. 80G1EXK units are available in heating capacities of 40,000 to 100,000 Btuh and cooling applications up to 5 tons. Units are approved for installations up 7500 feet above sea level and factory equipped for use with natural gas only. The 80G1EXK is a single-stage gas furnace with high efficiency constant torque blower motor which meets the California Ultra Low Nitrogen Oxides (NOx) Standards (14ng/J) and California Seasonal Efficiency requirements. All units use a redundant gas valve to assure safety shut-off as required by C.S.A. All specifications are subject to change without notice.
CONFIGURATIONS
- Upflow / Horizontal
- Aluminized steel tubular heat exchanger
- Compact 33” height
- Standardized widths for easy coil fit
- Multi-speed high efficiency (constant torque) blower motor
- Easily removable slide out blower design
- Enhanced cooling SEER ratings when applied with properly matched cooling equipment
- Left or right utility connections, except where noted
- Removable floor base for bottom return air
- Zero step horizontal conversion
- 10 year limited parts warranty / lifetime heat exchanger warranty available. See limited warranty document for details.
