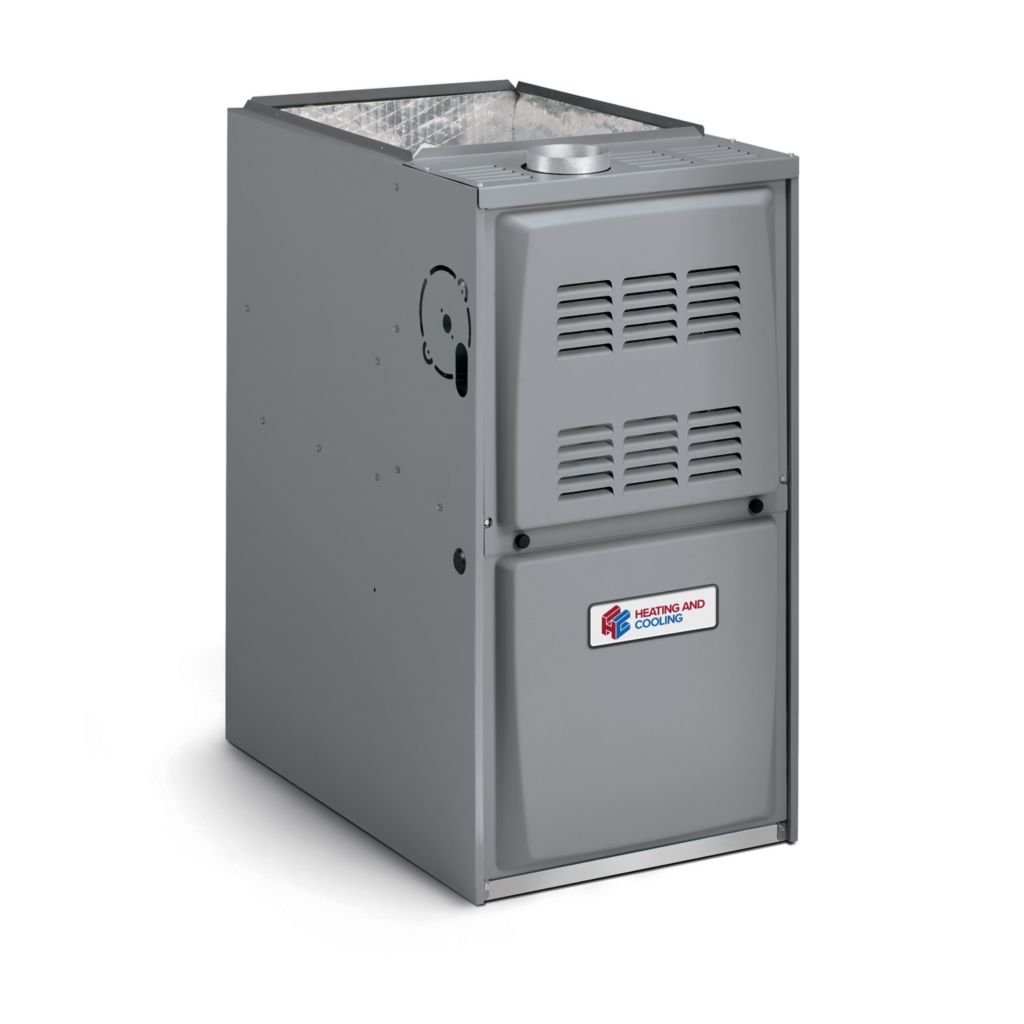

80G1UH070AE12K - 80% AFUE UH Gas Furnace, Single Stage, 70K BTU, 14.5" W, 120/1/60, Refrigerant Detection-Ready

Product Specifications

SKU:
80G1UH070AE12K
AFUE:
80
AHRI - Usage:
Indoor AHU
Air Flow Direction:
Upflow / Horizontal
Blower Motor HP:
1/2 HP
Blower Motor Speeds:
Multiple
Blower Wheel Diameter:
10"
Blower Wheel Width:
10"
Brand:
Heating and Cooling
BTU Input:
66,000
BTU Output:
53,000
Cabinet Width:
14.5
CFM:
504-1,160
Color:
Gray
Country of Origin:
USA
Cycle/Hertz:
60 Hz
Energy Star Rated:
No
Equipment Type:
Furnace
ERP ID:
457022
FER Compliant:
No
Filter Size:
Contractor Supplied Based on Application
EPS:
Equipment
Fuel Type:
Natural Gas or LP
Full Load Amps:
6.8
Furnace Type:
Gas
Gas Connection Size:
1/2"
Gas Connection Type:
NPT
Ignition Type:
Hot Surface (HSI)
Maximum Overcurrent Protection (MOCP):
15
Phase:
Single
Product Family:
80G1E
Prop 65:
Yes
Substantial Commodity:
Steel; Copper; Aluminum
Tonnage:
3
UOM:
EA
UPC:
662551602432
Voltage:
120 VAC
Weight:
111

Product Documentation

80G1UHEK UPFLOW / HORIZONTAL GAS FURNACE, SINGLE STAGE, WITH REFRIGERANT DETECTION

INSTALLATION FEATURES
  • Left or right utility connections
  • Removable floor base (upflow / horizontal units) for bottom return air
  • Zero step horizontal conversion
CONFIGURATIONS
  • Upflow / Horizontal

HEAT EXCHANGER DESIGN
  • Aluminized steel tapered crimped non-welded clam shell heat exchanger design
BURNERS
  • Aluminized steel inshot burners for smooth ignition
CABINET DESIGN
  • Compact 33” height
  • Standardized widths for easy coil fit
AIR DELIVERY SYSTEM
  • Multi-speed high efficiency (constant torque) blower motor
  • Easily removable slide out blower design
  • Enhanced cooling SEER ratings when applied with properly matched cooling equipment
CONTROLS
  • Single stage gas valve
  • Durable silicon nitride ignitor
  • Self diagnostics saving last 10 fault codes regardless of power interruption
  • Control features electronic air cleaner and humidifier terminals

WARRANTY
  • 10 year limited parts warranty / lifetime heat exchanger warranty available. See limited warranty document for details.
