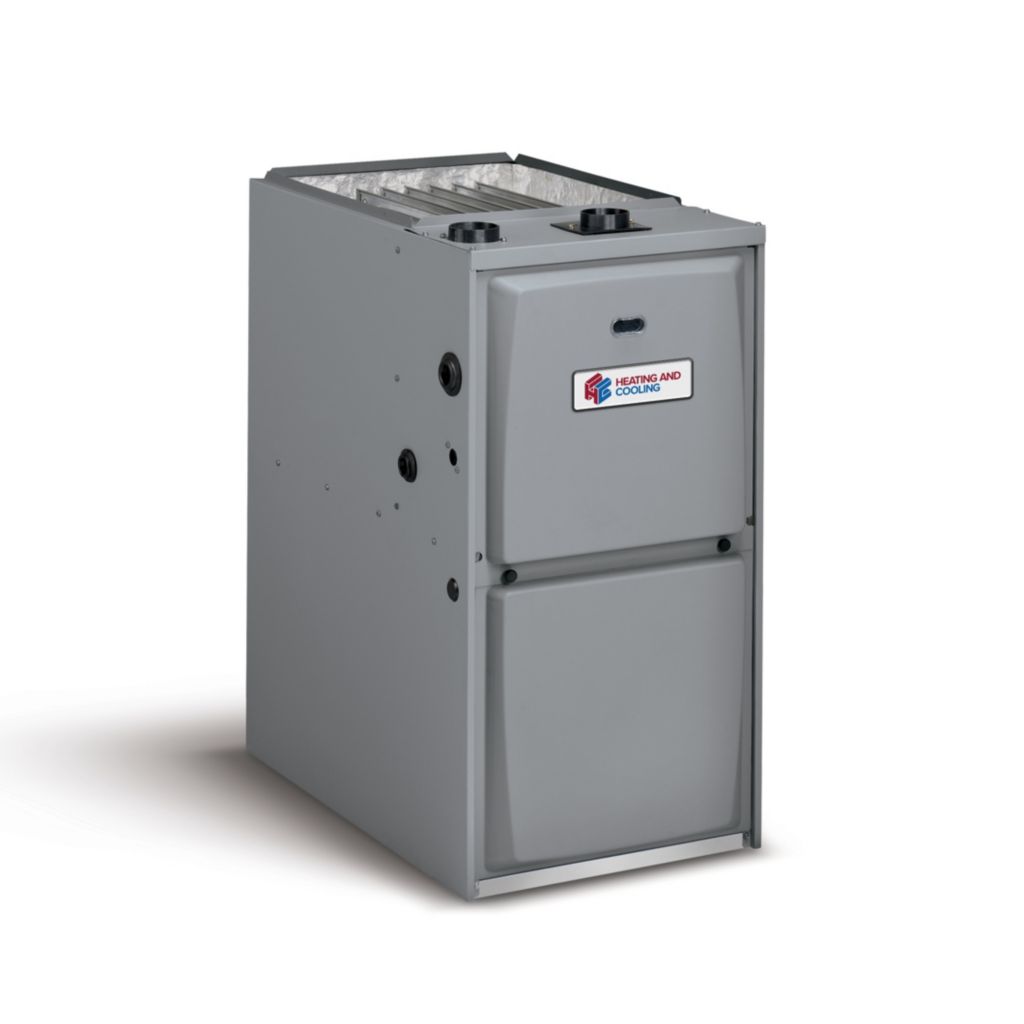

96G1UH110CE20K - 96% AFUE UH Gas Furnace, Single Stage, 110K BTU, 21" W Cabinet, 120/1/60, Refrigerant Detection-Ready
Product Specifications
Product Specifications
SKU:
96G1UH110CE20K
AFUE:
96
AHRI - Usage:
Indoor AHU
Air Flow Direction:
Upflow / Horizontal
Blower Motor HP:
3/4
Blower Motor Speeds:
Multiple
Blower Motor Type:
ECM (Electronically Commutated Motor)
Brand:
Heating and Cooling
BTU Input:
110,000
BTU Output:
107,200
Cabinet Width:
21
Color:
Gray
Country of Origin:
USA
Cycle/Hertz:
60 Hz
Energy Star Rated:
Yes
Equipment Type:
Furnace
ERP ID:
457030
FER Compliant:
No
Filter Size:
16" x 25" x 1"; 20" x 25" x 1" (Bottom), 16" x 25" x 1" (Side)
EPS:
Equipment
Fuel Type:
Natural Gas
Full Load Amps:
10.9
Furnace Type:
Gas
Gas Connection Size:
1/2"
Gas Connection Type:
NPT
Ignition Type:
Hot Surface (HSI)
Includes Filter Rack:
No
Maximum Overcurrent Protection (MOCP):
15
Phase:
Single
Product Family:
96G1EK
Prop 65:
Yes
Substantial Commodity:
Steel; Copper; Aluminum
UOM:
EA
UPC:
662551600780
Voltage:
120 VAC
Weight:
162
Product Documentation
Product Documentation
96G1EK - 96% GAS FURNACE SINGLE STAGE, CONSTANT TORQUE MOTOR
CONFIGURATIONS
This product is not certified to be sold or installed in the South Coast Air Quality Management District (SCAQMD). It does not meet the SCAQMD Rule 1111 NOx
emission limit of 14 Ng/J.
This product is not certified to be sold or installed in the San Joaquin Valley Air Pollution Control District (SJVAPCD). It does not meet the SJVAPCD Rule 4905 NOx emission limit of 14 Ng/J
View full details
CONFIGURATIONS
- Upflow / Horizontal
- Aluminized steel primary heat exchanger with crimped non-welded construction
- AL 29-4C Stainless steel secondary heat exchanger
- Aluminized steel inshot burners for smooth ignition
- Compact 33” height
- Standardized widths for easy coil fit
- Multi-speed high efficiency (constant torque) blower motor
- Easily removable slide out blower design
- Enhanced cooling SEER ratings when applied with properly matched cooling equipment.
- Single stage gas valve
- Durable silicon nitride ignitor
- Self diagnostics saves last 10 fault codes regardless of power interruption
- Control features electronic air cleaner and humidifier terminals
- Designed certified for direct (2-pipe) and non direct (1-pipe) applications
- Easily vented with PVC pipe
- Left or right utility connection
- Design certified for direct and non-direct vent applications
- Zero step horizontal conversion
- Removable floor base (upflow / horizontal units) for bottom return air
- Complies with California’s South Coast Air Quality Management district 40 ng/J Low NOx requirements
- 10 year limited parts warranty / lifetime heat exchanger warranty available. See limited warranty document for details.
This product is not certified to be sold or installed in the South Coast Air Quality Management District (SCAQMD). It does not meet the SCAQMD Rule 1111 NOx
emission limit of 14 Ng/J.
This product is not certified to be sold or installed in the San Joaquin Valley Air Pollution Control District (SJVAPCD). It does not meet the SJVAPCD Rule 4905 NOx emission limit of 14 Ng/J
