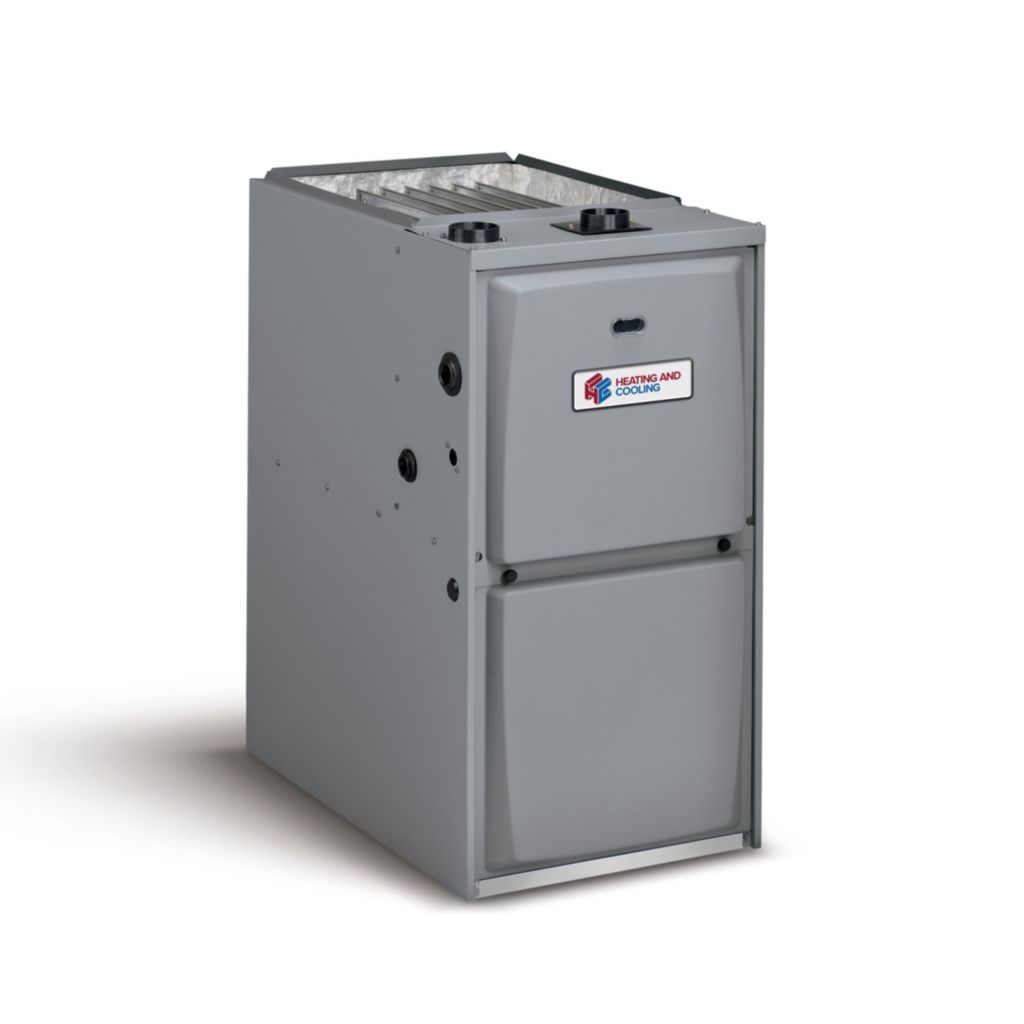

96G2DF090CV20 - 96% AFUE DF Gas Furnace, 2-Stage, 90K BTU, 21" W Cabinet, 120/1/60
Product Specifications
Product Specifications
SKU:
96G2DF090CV20
AFUE:
96
AHRI - Usage:
Indoor AHU
Air Flow Direction:
Downflow
Blower Motor HP:
1
Blower Motor Speeds:
Variable
Blower Motor Type:
ECM (Electronically Commutated Motor)
Blower Wheel Diameter:
11"
Blower Wheel Width:
11"
Brand:
Heating and Cooling
BTU Input:
57,000-88,000
BTU Output:
90,000
Cabinet Width:
21
CFM Heating:
910-1,825
Color:
Gray
Country of Origin:
MEX
Cycle/Hertz:
60 Hz
Energy Star Rated:
Yes
Equipment Type:
Furnace
ERP ID:
443294
FER Compliant:
No
Filter Size:
Contractor Supplied Based on Application
EPS:
Equipment
Fuel Type:
Natural Gas
Full Load Amps:
12.8
Furnace Type:
Gas
Gas Connection Size:
1/2" [12.7 mm] N.P.T.
Gas Connection Type:
NPT
Ignition Type:
Hot Surface (HSI)
Includes Filter Rack:
No
Maximum Overcurrent Protection (MOCP):
20
Phase:
Single
Product Family:
96G2V
Prop 65:
Yes
Substantial Commodity:
Steel; Copper; Aluminum
UOM:
EA
Voltage:
120 VAC
Weight:
166
Product Documentation
Product Documentation
Variable speed technology keeps your heat steady and warm, while helping to keep energy costs low.
- 96% AFUE efficiency rating saves you energy even during the coldest winter months
- ENERGY STAR®certification means you could be eligible for money-saving rebates
- Variable speed motor starts up slowly and then quietly accelerates to keep temperature and humidity perfectly controlled, while helping you save money on energy costs
- Robust aluminized steel heat exchanger is crimped, not welded, for increased durability and safety when burners are ignited
- Two-stage operation adjusts heat output based on indoor and outdoor temperatures to optimize comfort and energy usage
- Downflow
