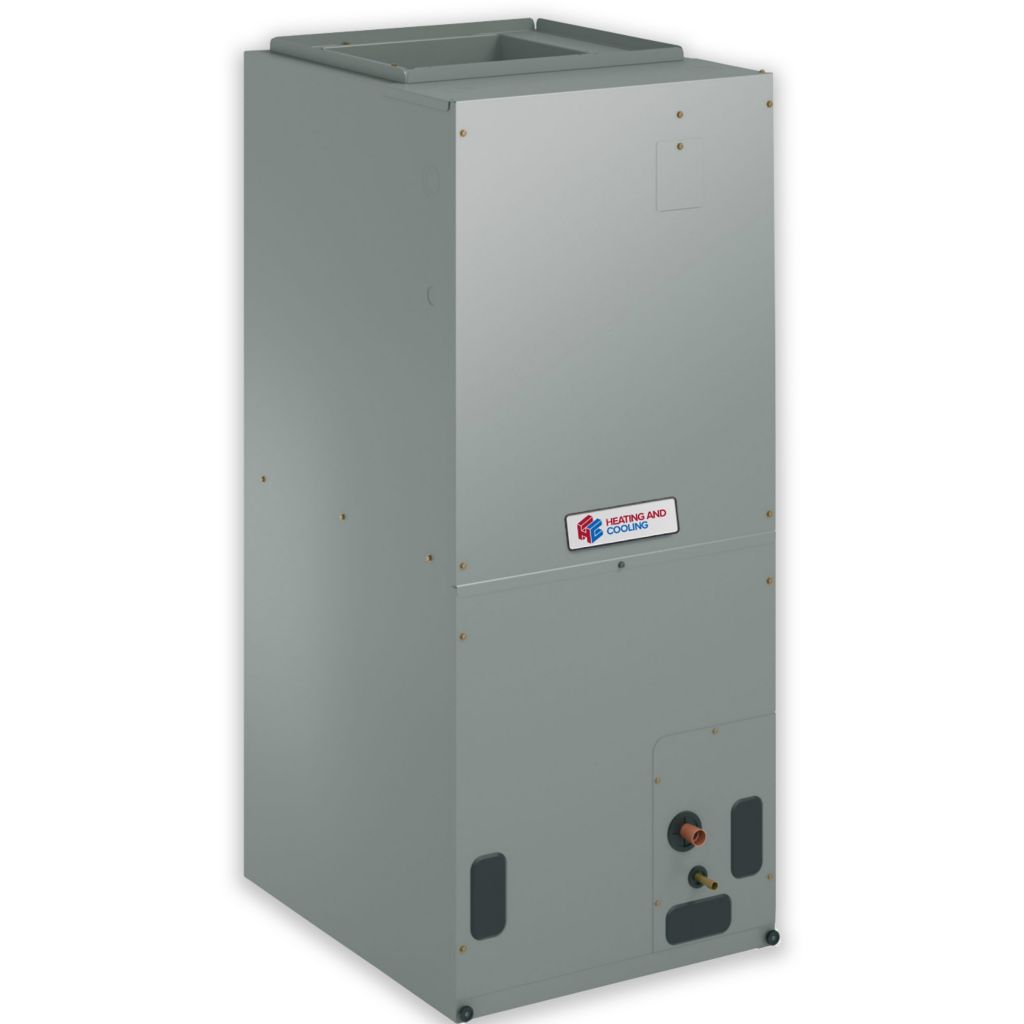

BCE5C48MA4X - 4 Ton Air Handler, Multi-Position, PSC Motor, R410A TXV, 208-230/1/60

Product Specifications

SKU:
BCE5C48MA4X
AHRI - Usage:
Indoor AHU
Air Flow Direction:
Multi-Position
Approvals:
ETL Listed
Blower Motor HP:
1
Blower Motor Type:
PSC (Permanent Split Capacitor)
Blower Wheel Diameter:
12"
Blower Wheel Width:
10"
Brand:
Heating and Cooling
Cabinet Width:
21.5
CFM:
1,110-1,895
Color:
Gray
Cooling Capacity:
48,000
Country of Origin:
MEX
Cycle/Hertz:
60 Hz
Drain Connection Size:
3/4"
Electric Heat Range [kW]:
5-20
Energy Star Rated:
No
Equipment Type:
Heat Pump
ERP ID:
443639
Filter Size:
18" x 20"
EPS:
Equipment
Heat Pump Compatible:
Yes
Includes Filter Rack:
Yes
Liquid Line Fitting Type:
Sweat or Braze
Liquid Line Size (OD):
3/8"
Metering Device:
TXV/TEV - Thermostatic Expansion Valve
Phase:
Single
Product Family:
BCE5C
Prop 65:
Yes
Refrigerant:
R-410A
Stage:
1
Substantial Commodity:
Steel; Copper; Aluminum
Suction Line Fitting Type:
Sweat or Braze
Suction Line Size (OD):
7/8"
Tonnage:
4
UOM:
EA
UPC:
662551530346
Voltage:
208-230 VAC
Weight:
186

Product Documentation

BCE5CC OMPACT AIR HANDLER

APPLICATION
  • 1 1/2 - 5 ton systems
  • Sequenced for demand management
  • External access to heater circuit breakers
INSTALLATION
  • 1 piece design
  • Smaller profile for tight application areas
  • Multiposition - Factory ready for upflow, downflow, and horizontal left/right applications
  • Approved for installation in manufactured housing and mobile homes


CABINET
  • Foil faced insulation for enhanced indoor air quality
  • Double hemmed technology for increased structural rigidity
  • Improved gasketing on doors to prevent air leaks
  • Filter rack with thumb screws for easy access and removal
  • Polymer plugs on drain locations for easy installation
  • Baked polyester paint finished over galvanized steel for maximum durability
  • High-strength, UV and heat resistant polymer drain pan designed for corrosion resistance
  • Antimicrobial polymer drain pan built to resist mold and mildew growth
  • 2% or less air leakage

COMPONENTS
  • Efficient PSC blower motors (4 and 5 ton units utilize constant torque motor)
  • Standard transformer and blower relay
  • Field installed 5 - 20kW electric heat kits with easy plug connections
  • Blower time delay for increased efficiency
  • Sleeves on distributor tubing to protect tubes

WARRANTY
  • 10 year limited warranty on all parts, extended warranty available*
*Warranty provides for a total of 10 years of limited warranty coverage (Standard 5-year limited parts warranty plus an additional 5-year limited extended parts warranty).
Warranty must be registered online within 60 days of installation to qualify for 10-year coverage. Unregistered equipment defaults to 5-year coverage. See full warranty at www.alliedair.com for terms, conditions, and exclusions.
